AD734

10 MHz/ 4-Quadrant Multiplier/Divider

AD734 Features

* High accuracy 0.1% typical error High speed 10 MHz full power bandwidth 450 V/μs slew rate 200 ns settling to 0.1% at full power Low distortion

* 80 dBc from any input Third-order IMD typically

* 75 dBc at 10 MHz Low noise 94 dB SNR, 10 Hz to 20 kHz 70 dB SNR, 10 Hz to 10 MHz Direct di

AD734 General Description

The AD734 is an accurate high speed, four-quadrant analog multiplier that is pin compatible with the industry-standard AD534 and provides the transfer function W = XY/U. The AD734 provides a low impedance voltage output with a full power (20 V p-p) bandwidth of 10 MHz. Total static error (scaling, o.

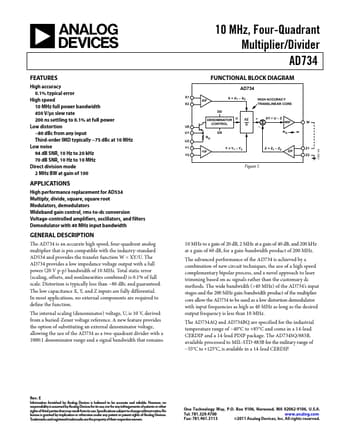

AD734 Datasheet (432.25 KB)

Preview of AD734 PDF

Datasheet Details

Part number:

AD734

Manufacturer:

Analog Devices ↗

File Size:

432.25 KB

Description:

10 mhz/ 4-quadrant multiplier/divider.
