AD7400

Isolated Sigma-Delta Modulator

AD7400 Features

* 10 MHz clock rate

* Second-order modulator

* 16 bits no missing codes

* ±2 LSB INL typical at 16 bits

* 3.5 µV/°C maximum offset drift

* On-board digital isolator

* On-board reference

* Low power operation: 18 mA maximum at 5.25 V

* 40°C to +105°C opera

AD7400 General Description

The AD7400 is a second-order, sigma-delta (Σ-Δ) modulator that converts an analog input signal to a high speed, 1-bit data stream with on-chip digital isolation based on Analog Devices, Inc. iCoupler® technology. The AD7400 operates from a 5 V power supply and accepts a differential input signal of .

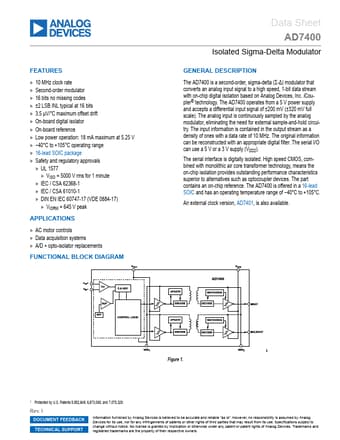

AD7400 Datasheet (2.84 MB)

Preview of AD7400 PDF

Datasheet Details

Part number:

AD7400

Manufacturer:

Analog Devices ↗

File Size:

2.84 MB

Description:

Isolated sigma-delta modulator.
