AD7401A

Isolated Sigma-Delta Modulator

AD7401A Features

* 20 MHz maximum external clock rate Second-order modulator 16 bits, no missing codes ±2 LSB INL typical at 16 bits 1 μV/°C typical offset drift On-board digital isolator On-board reference ±250 mV analog input range Low power operation: 17 mA typical at 5.5 V

* 40°C to +125°C operating range 1

AD7401A General Description

The AD7401A1 is a second-order, sigma-delta (Σ-Δ) modulator that converts an analog input signal into a high speed, 1-bit data stream with on-chip digital isolation based on Analog Devices, Inc., iCoupler® technology. The AD7401A operates from a 5 V power supply and accepts a differential input sign.

AD7401A Datasheet (550.51 KB)

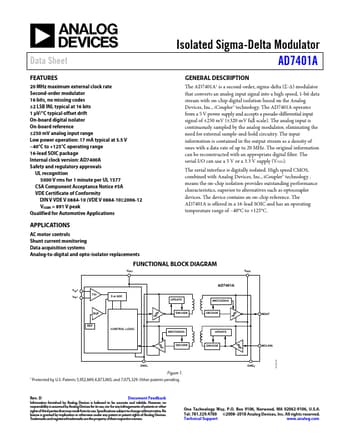

Preview of AD7401A PDF

Datasheet Details

Part number:

AD7401A

Manufacturer:

Analog Devices ↗

File Size:

550.51 KB

Description:

Isolated sigma-delta modulator.
