AD7441 Datasheet, Adcs, Analog Devices

AD7441 Features

  • Adcs Fast throughput rate: 1 MSPS Specified for VDD of 2.7 V to 5.25 V Low power at maximum throughput rate: 4 mW maximum at 1 MSPS with VDD = 3 V 9.25 mW maximum at 1 MSPS with VDD = 5 V Ps

PDF File Details

Part number:

AD7441

Manufacturer:

Analog Devices ↗

File Size:

482.80kb

Download:

📄 Datasheet

Description:

10-/12-bit adcs. The AD7441/AD7451 1 are, respectively, 10-/12-bit high speed, low power, single-supply, successive approximation (SAR), analog-to-dig

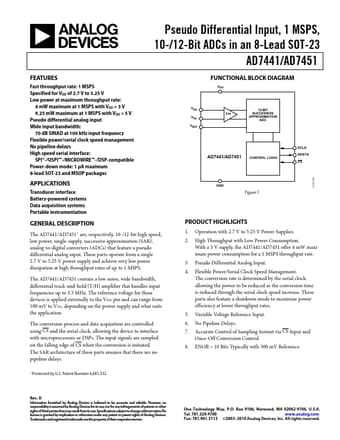

Datasheet Preview: AD7441 📥 Download PDF (482.80kb)
Page 2 of AD7441 Page 3 of AD7441

AD7441 Application

  • Applications Transducer interface Battery-powered systems Data acquisition systems Portable instrumentation GND Figure 1. GENERAL DESCRIPTION The
