AD7533 CMOS LOW COST 10-BIT MULTIPLYING DAC

The AD7533 is a low cost, 10-bit, 4-quadrant multiplying DAC manufactured using an advanced thin-film-on-monolithicCMOS wafer fabrication process. Pin and function equivalent to the AD7520 industry standard, the AD7533 is recommended as a lower cost alternative for old AD7520 sockets or new 10-bit D.

AD7533 Features

* Low cost 10-bit DAC Low cost AD7520 replacement Linearity: ½ LSB, 1 LSB, or 2 LSB Low power dissipation Full 4-quadrant multiplying DAC CMOS/TTL direct interface Latch free (protection Schottky not required) Endpoint linearity APPLICATIONS Digitally controlled attenuators Programmable gain amplifier

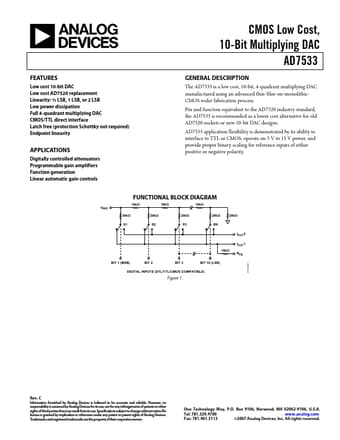

AD7533 Datasheet (302.59 KB)
