AD7545 - 12-Bit/ Buffered/ Multiplying CMOS DAC

Datasheet Summary

Description

The AD7545 is a low cost monolithic 12-bit, CMOS multiplying DAC with on-board data latches.

Data is loaded in a single 12-bit wide word which allows interfacing directly to most 12-bit and 16-bit bus systems.

Loading of the input latches is under the control of the CS and WR inputs.

Features

  • 12-Bit Resolution.
  • Low Gain T. C. 2ppm/oC (Typ).
  • Fast TTL/CMOS Compatible Data Latches.
  • Single +5V to +15V Supply.
  • Low Power.
  • Low Cost.
  • /883 Processed Versions Available Ordering Information PART NUMBER AD7545JN AD7545KN AD7545AN AD7545BN TEMP. RANGE (oC) 0 to 70 0 to 70 -40 to 85 -40 to 85.

📥 Download Datasheet

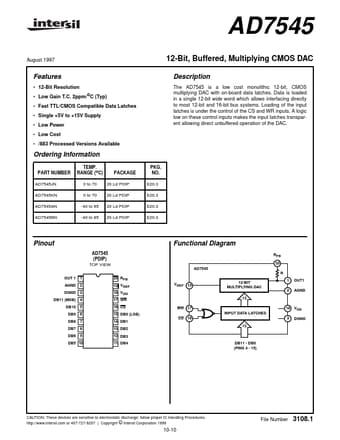

Datasheet preview – AD7545

Datasheet Details

Part number AD7545
Manufacturer Intersil Corporation
File Size 111.20 KB
Description 12-Bit/ Buffered/ Multiplying CMOS DAC
Datasheet download datasheet AD7545 Datasheet
Additional preview pages of the AD7545 datasheet.

📁 Similar Datasheet

  • AD7545 - CMOS 12-Bit Buffered Multiplying DAC (Analog Devices)
  • AD7545A - CMOS 12-Bit Buffered Multiplying DAC (Analog Devices)
  • AD7541A - Monolithic Multiplying DAC (Analog Devices)
  • AD7542 - CMOS uP-COMPATIBLE 12-BIT DAC (Analog Devices)
  • AD7543 - CMOS SERIAL INPUT 12-BIT DAC (Analog Devices)
  • AD7546 - CMOS 16-Bit Voltage Out DAC (Analog Devices)
  • AD7547 - PARALLEL LOADING DUAL 12-BIT DAC (Analog Devices)
  • AD7548 - 8-BIT uP COMPATIBLE 12-BIT DAC (Analog Devices)
  • AD7549 - DUAL 12-BIT uP-COMPATIBLE DAC (Analog Devices)
  • AD75004 - Quad 12-Bit D/A Converter (Analog Devices)
Other Datasheets by Intersil Corporation
  • AD7541 - 12-Bit Multiplying D/A Converter
  • AD7520 - 10-Bit/ 12-Bit/ Multiplying D/A Converters
  • AD7521 - 10-Bit/ 12-Bit/ Multiplying D/A Converters
  • AD7523 - 8-Bit/ Multiplying D/A Converters
  • AD7530 - 10-Bit/ 12-Bit/ Multiplying D/A Converters
  • AD7531 - 10-Bit/ 12-Bit/ Multiplying D/A Converters
  • AD7533 - 8-Bit/ Multiplying D/A Converters
  • AD741 - Operational Amplifier

Full PDF Text Transcription

Click to expand full text
AD7545 August 1997 12-Bit, Buffered, Multiplying CMOS DAC Description The AD7545 is a low cost monolithic 12-bit, CMOS multiplying DAC with on-board data latches. Data is loaded in a single 12-bit wide word which allows interfacing directly to most 12-bit and 16-bit bus systems. Loading of the input latches is under the control of the CS and WR inputs. A logic low on these control inputs makes the input latches transparent allowing direct unbuffered operation of the DAC. Features • 12-Bit Resolution • Low Gain T.C. 2ppm/oC (Typ) • Fast TTL/CMOS Compatible Data Latches • Single +5V to +15V Supply • Low Power • Low Cost • /883 Processed Versions Available Ordering Information PART NUMBER AD7545JN AD7545KN AD7545AN AD7545BN TEMP.
