AD7575 - 8-Bit ADC

Datasheet Summary

Description

The AD7575 is a high speed 8-bit ADC with a built-in track/ hold function.

The successive approximation conversion technique is used to achieve a fast conversion time of 5 µs, while the built-in track/hold allows full-scale signals up to 50 kHz (386 mV/µs slew rate) to be digitized.

Features

  • Fast Conversion Time: 5 ␮s On-Chip Track/Hold Low Total Unadjusted Error: 1 LSB Full Power Signal Bandwidth: 50 kHz Single +5 V Supply 100 ns Data Access Time Low Power (15 mW typ) Low Cost Standard 18-Lead DlPs or 20-Terminal Surface Mount Packages LC2MOS 5 ␮s 8-Bit ADC with Track/Hold AD7575 AIN AGND VREF CLK.

📥 Download Datasheet

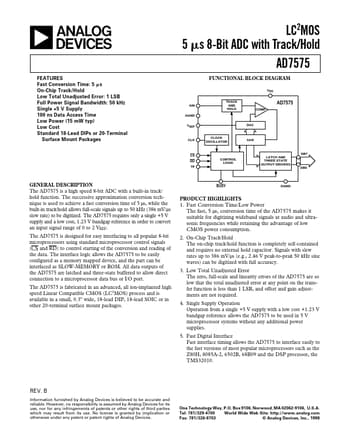

Datasheet preview – AD7575

Datasheet Details

Part number AD7575
Manufacturer Analog Devices
File Size 236.49 KB
Description 8-Bit ADC
Datasheet download datasheet AD7575 Datasheet
Additional preview pages of the AD7575 datasheet.

📁 Similar Datasheet

  • AD7520 - Multiplying D/A Converters (Harris)
  • AD7520 - 10-Bit/ 12-Bit/ Multiplying D/A Converters (Intersil Corporation)
  • AD7521 - Multiplying D/A Converters (Harris)
  • AD7521 - 10-Bit/ 12-Bit/ Multiplying D/A Converters (Intersil Corporation)
  • AD7523 - 8-Bit/ Multiplying D/A Converters (Intersil Corporation)
  • AD7530 - Multiplying D/A Converters (Harris)
  • AD7530 - 10-Bit/ 12-Bit/ Multiplying D/A Converters (Intersil Corporation)
  • AD7531 - Multiplying D/A Converters (Harris)
  • AD7531 - 10-Bit/ 12-Bit/ Multiplying D/A Converters (Intersil Corporation)
  • AD7533 - 10-Bit Multiplying D/A Converter (Renesas)
Other Datasheets by Analog Devices
  • AD7570 - CMOS 10-Bit Monolithic A/D Converter
  • AD7571 - CMOS uP-Compatible 10-Bit Plus Sign ADC
  • AD7572 - LC2MOS COMPLETE/ HIGH SPEED 12-BIT ADC
  • AD7572A - HIGH SPEED 12-BIT ADC
  • AD7574 - CMOS uP-COMPATIBLE 8-BIT DAC
  • AD7576 - LC2MOS 10 us uP-Compatible 8-Bit ADC
  • AD7578 - CMOS 12-BIT SUCCESSIVE APPROXIMATION ADC
  • AD7579 - LC2MOS 10-BIT SAMPLING A/D CONVERTERS

Full PDF Text Transcription

Click to expand full text
a FEATURES Fast Conversion Time: 5 ␮s On-Chip Track/Hold Low Total Unadjusted Error: 1 LSB Full Power Signal Bandwidth: 50 kHz Single +5 V Supply 100 ns Data Access Time Low Power (15 mW typ) Low Cost Standard 18-Lead DlPs or 20-Terminal Surface Mount Packages LC2MOS 5 ␮s 8-Bit ADC with Track/Hold AD7575 AIN AGND VREF CLK FUNCTIONAL BLOCK DIAGRAM TRACK AND HOLD VDD COMP AD7575 CLOCK OSCILLATOR DAC SAR CS LATCH AND DB7 RD TP CONTROL LOGIC THREE STATE OUTPUT DRIVERS DB0 GENERAL DESCRIPTION The AD7575 is a high speed 8-bit ADC with a built-in track/ hold function. The successive approximation conversion technique is used to achieve a fast conversion time of 5 µs, while the built-in track/hold allows full-scale signals up to 50 kHz (386 mV/µs slew rate) to be digitized.
