AD7701 Datasheet, Converter, Analog Devices

AD7701 Features

  • Converter Monolithic 16-Bit ADC 0.0015% Linearity Error On-Chip Self-Calibration Circuitry Programmable Low-Pass Filter 0.1 Hz to 10 Hz Corner Frequency 0 V to +2.5 V or ؎2.5 V Analog Input Range

PDF File Details

Part number:

AD7701

Manufacturer:

Analog Devices ↗

File Size:

354.07kb

Download:

📄 Datasheet

Description:

16-bit a/d converter. The AD7701 is a 16-bit ADC that uses a sigma-delta conversion technique. The analog input is continuously sampled by an analog modula

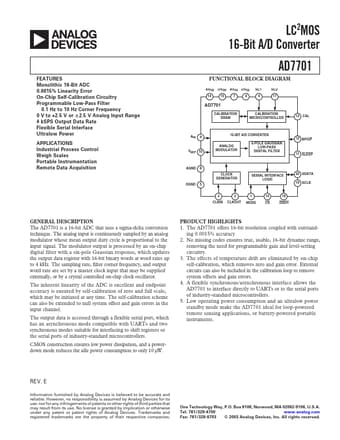

Datasheet Preview: AD7701 📥 Download PDF (354.07kb)
Page 2 of AD7701 Page 3 of AD7701

AD7701 Application

  • Applications Industrial Process Control Weigh Scales Portable Instrumentation Remote Data Acquisition LC2MOS 16-Bit A/D Converter AD7701 FUNCTION
