AD7706 Datasheet - Analog Devices

AD7706, Sigma-Delta ADCs

.
The AD7705/AD7706 are complete analog front ends for low frequency measurement applications.

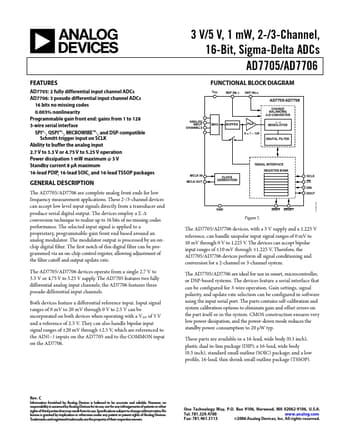

datasheet Preview Page 1 from Datasheet4u.com

AD7706-AnalogDevices.pdf

AD7706 Datasheet Preview — Preview of AD7706 PDF

Datasheet Details

Part number:

AD7706

Manufacturer:

Analog Devices ↗

File Size:

431.90 KB

Description:

Sigma-Delta ADCs

Features

* AD7705: 2 fully differential input channel ADCs AD7706: 3 pseudo differential input channel ADCs 16 bits no missing codes 0.003% nonlinearity Programmable gain front end: gains from 1 to 128 3-wire serial interface SPI®-, QSPI™-, MICROWIRE™-, and DSP-compatible Schmitt-trigger input on SCLK Ability

Applications

* These 2-/3-channel devices can accept low level input signals directly from a transducer and produce serial digital output. The devices employ a Σ-Δ conversion technique to realize up to 16 bits of no missing codes performance. The selected input signal is applied to a proprietary, programmable-gai
