AD7746 - 24-Bit Capacitance-to-Digital Converter

This page provides the datasheet information for the AD7746, a member of the AD7745 24-Bit Capacitance-to-Digital Converter family.

Datasheet Summary

Description

The AD7745/AD7746 are a high resolution, Σ-Δ capacitance-todigital converter (CDC).

The capacitance to be measured is connected directly to the device inputs.

Features

  • Capacitance-to-digital converter New standard in single chip solutions Interfaces to single or differential floating sensors Resolution down to 4 aF (that is, up to 21 ENOB) Accuracy: 4 fF Linearity: 0.01% Common-mode (not changing) capacitance up to 17 pF Full-scale (changing) capacitance range: ±4 pF Tolerant of parasitic capacitance to ground up to 60 pF Update rate: 10 Hz to 90 Hz Simultaneous 50 Hz and 60 Hz rejection at 16 Hz Temperature sensor on-chip Resolution: 0.1°C, accuracy: ±2°C Vol.

📥 Download Datasheet

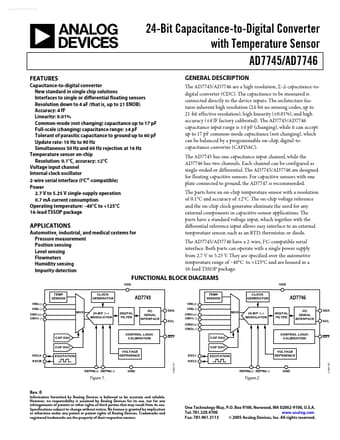

Datasheet preview – AD7746

Datasheet Details

Part number AD7746
Manufacturer Analog Devices
File Size 529.42 KB
Description 24-Bit Capacitance-to-Digital Converter
Datasheet download datasheet AD7746 Datasheet
Additional preview pages of the AD7746 datasheet.

📁 Similar Datasheet

  • AD7216N2L - AC-DC / External Freestanding Adapter (Emerson)
  • AD7315 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7318 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7325 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7328 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7330 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7333 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7336 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7344 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7350 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
Other Datasheets by Analog Devices
  • AD7740 - Synchronous Voltage-to-Frequency Converter
  • AD7741 - Single and Multichannel/ Synchronous Voltage-to-Frequency Converters
  • AD7742 - Single and Multichannel/ Synchronous Voltage-to-Frequency Converters
  • AD7745 - 24-Bit Capacitance-to-Digital Converter
  • AD7747 - 24-Bit Capacitance-to-Digital Converter
  • AD774B - Complete 12-Bit A/D Converters
  • AD7701 - 16-Bit A/D Converter
  • AD7703 - 20-Bit A/D Converter

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 24-Bit Capacitance-to-Digital Converter with Temperature Sensor AD7745/AD7746 FEATURES Capacitance-to-digital converter New standard in single chip solutions Interfaces to single or differential floating sensors Resolution down to 4 aF (that is, up to 21 ENOB) Accuracy: 4 fF Linearity: 0.01% Common-mode (not changing) capacitance up to 17 pF Full-scale (changing) capacitance range: ±4 pF Tolerant of parasitic capacitance to ground up to 60 pF Update rate: 10 Hz to 90 Hz Simultaneous 50 Hz and 60 Hz rejection at 16 Hz Temperature sensor on-chip Resolution: 0.1°C, accuracy: ±2°C Voltage input channel Internal clock oscillator 2-wire serial interface (I2C®-compatible) Power 2.7 V to 5.25 V single-supply operation 0.
