AD7793, AD7792 16/24-Bit Sigma-Delta ADC

Analog Devices

Description

www.DataSheet4U.com Preliminary Technical Data .
The AD7792/AD7793 is a low power, complete analog front end for low frequency measurement applications.

📥 Download Datasheet

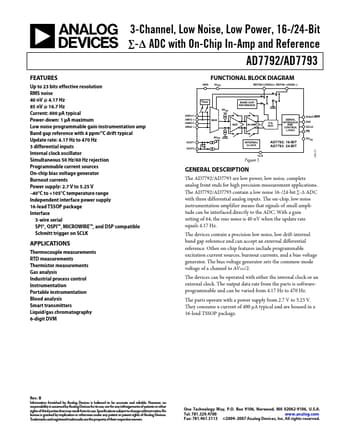

AD7793 Datasheet Preview — This datasheet PDF includes multiple part numbers: AD7793, AD7792. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AD7793, AD7792
Manufacturer: Analog Devices ↗
File Size: 429.40 KB
Datasheet: AD7792_AnalogDevices.pdf
Description: 16/24-Bit Sigma-Delta ADC
Note: This datasheet PDF includes multiple part numbers: AD7793, AD7792.
Please refer to the document for exact specifications by model.

Features

* Resolution: Low Power, 16/24-Bit Sigma-Delta ADC with Low-Noise In-Amp and Embedded Reference AD7792/AD7793 GND VBIAS VDD BANDGAP REFERENCE AVDD REFIN(+)/AIN3(+) REFIN(-)/AIN3(-) GND SIGMA DELTA ADC SERIAL INTERFACE AND CONTROL LOGIC DOUT/RDY DIN SCLK CS AIN1(+) AIN1(-) AIN2(+) AIN2(-) VDD IOUT1 IO

Applications

* The AD7792/AD7793 contains a low noise 16/24-bit ∑-∆ ADC with three differential analog inputs. The on-chip low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the rms noise is 80 nV when the update rate equals
