AD7862 Datasheet, Adc, Analog Devices

AD7862 Features

  • Adc Two Fast 12-Bit ADCs Four Input Channels Simultaneous Sampling & Conversion 4 ␮s Throughput Time Single Supply Operation Selection of Input Ranges: ؎10 V for AD7862-10 ؎2.5 V for AD7862

PDF File Details

Part number:

AD7862

Manufacturer:

Analog Devices ↗

File Size:

406.42kb

Download:

📄 Datasheet

Description:

Simultaneous sampling dual 250 ksps 12-bit adc. The AD7862 is a high speed, low power, dual 12-bit A/D converter that operates from a single +5 V supply. The part contains two 4 µs

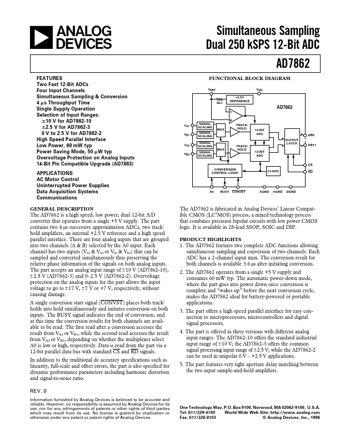

Datasheet Preview: AD7862 📥 Download PDF (406.42kb)
Page 2 of AD7862 Page 3 of AD7862

AD7862 Application

  • Applications AC Motor Control Uninterrupted Power Supplies Data Acquisition Systems Communications GENERAL DESCRIPTION The AD7862 is a high speed, l
