AD7864 - 12-Bit ADC

Analog Devices

📥 Download Datasheet

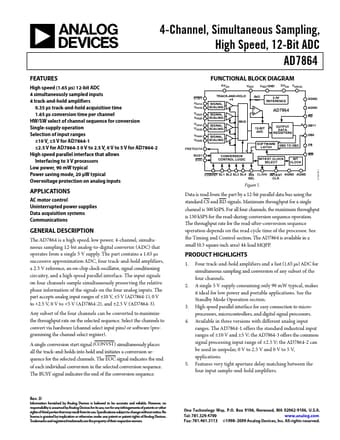

AD7864 Datasheet Preview — Preview of AD7864 PDF

Datasheet Details

Part number: AD7864
Manufacturer: Analog Devices ↗
File Size: 626.37 KB
Datasheet: AD7864-AnalogDevices.pdf
Description: 12-Bit ADC

AD7864 Product details

Description

The AD7864 is a high speed, low power, 4-channel, simultaneous sampling 12-bit analog-to-digital converter (ADC) that operates from a single 5 V supply.

Features

High speed (1.65 μs) 12-bit ADC 4 simultaneously sampled inputs 4 track-and-hold amplifiers 0.35 μs track-and-hold acquisition time 1.65 μs conversion time per channel HW/SW select of channel sequence for conversion Single-supply operation Selection of input ranges ±10 V, ±5 V for AD7864-1 ±2.5 V for AD7864-3 0 V to 2.5 V, 0 V to 5 V for AD7864-2 High speed parallel interface that allows Interfacing to 3 V processors Low power, 90 mW typical Power saving mode, 20 μW typical Overvoltage protectio.
