AD8300 Datasheet, Dac, Analog Devices

AD8300 Features

  • Dac Complete 12-Bit DAC No External Components Single +3 Volt Operation 0.5 mV/Bit with 2.0475 V Full Scale 6 ␮s Output Voltage Settling Time Low Power: 3.6 mW Compact SO-8 1.5 mm Height Pa

PDF File Details

Part number:

AD8300

Manufacturer:

Analog Devices ↗

File Size:

245.24kb

Download:

📄 Datasheet

Description:

+3 volt/ serial input complete 12-bit dac. The AD8300 is a complete 12-bit, voltage-output digital-toanalog converter designed to operate from a single +3 volt supply. Built u

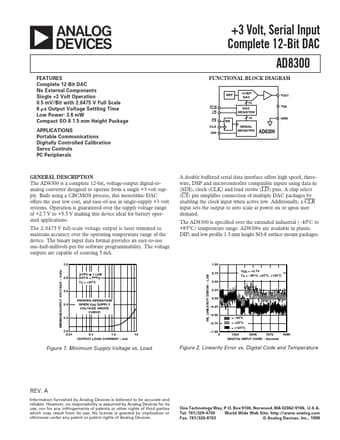

Datasheet Preview: AD8300 📥 Download PDF (245.24kb)
Page 2 of AD8300 Page 3 of AD8300

AD8300 Application

  • Applications Portable Communications Digitally Controlled Calibration Servo Controls PC Peripherals CLR LD CS CLK SDI +3 Volt, Serial Input Complet
