AD83586C - 2x60W Stereo / 1x120W Mono / 2x30W+1x60W 2.1CH Digital Audio Amplifier

AD83586C Description

ESMT AD83586C 2x60W Stereo / 1x120W Mono / 2x30W+1x60W 2.1CH Digital Audio Amplifier with 36 bands EQ and DRC Functions .
AD83586C is a digital audio amplifier capable of driving a pair of 8Ω, 25W (30W peak) plus a single 4Ω, 50W (60W peak), or a pair of 4Ω, 50W (60W peak.

AD83586C Features

* 16/18/20/24-bits input with I2S, Left-alignment and Right-alignment and TDM data format
* PSNR & DR(A-weighting) Loudspeaker: 130dB (PSNR), 106dB (DR)@24V
* Multiple sampling frequencies (Fs) 8kHz, 16kHz and 32kHz / 44.1kHz / 48kHz and 88.2k / 96kHz
* System clock = 32x,48x, 64x,96

AD83586C Applications

* TV audio
* Boom-box, CD and DVD receiver, docking system
* Powered speaker

📥 Download Datasheet

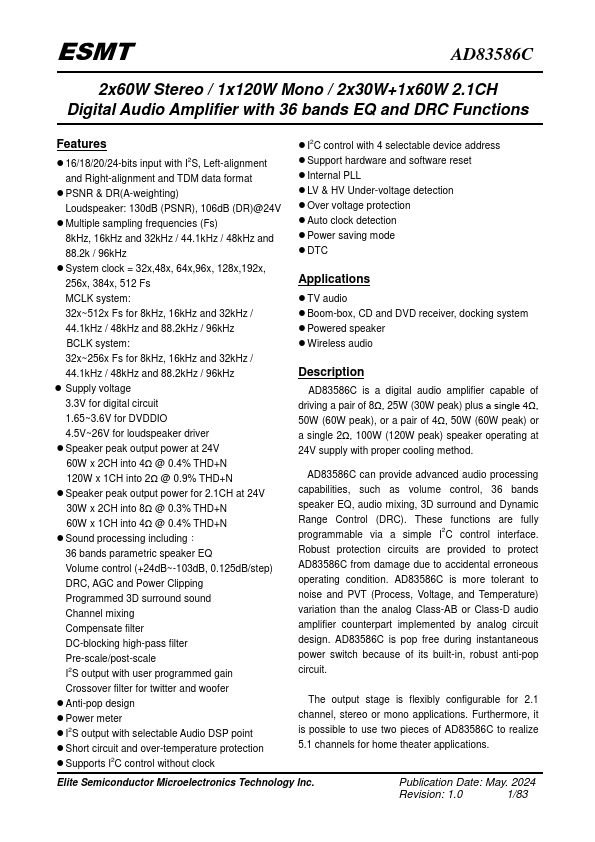

Preview of AD83586C PDF

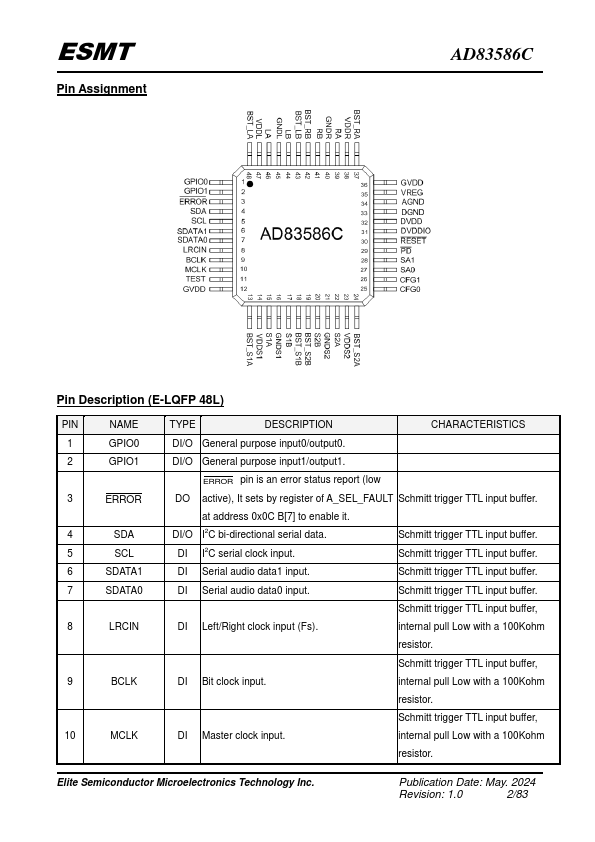

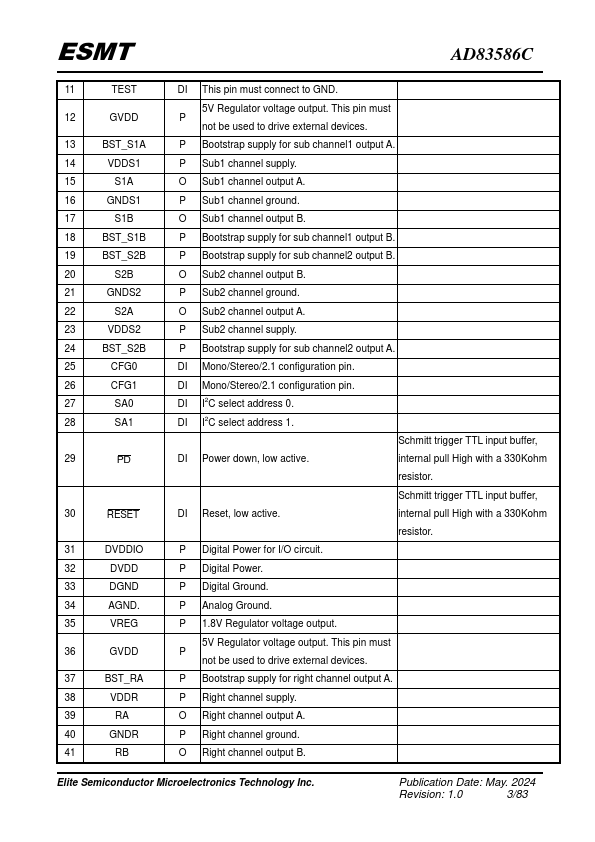

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AD83586C
Manufacturer
ESMT
File Size
1.75 MB
Datasheet
AD83586C-ESMT.pdf
Description
2x60W Stereo / 1x120W Mono / 2x30W+1x60W 2.1CH Digital Audio Amplifier
