AD8338 Datasheet, Amplifier, Analog Devices

AD8338 Features

• Amplifier Voltage controlled gain range of 0 dB to 80 dB 3 mA supply current at gain of 40 dB Low frequency (LF) to 18 MHz operation Supply range: 3.0 V to 5.0 V Low noise: 4.5 nV/√Hz at 80 dB ga

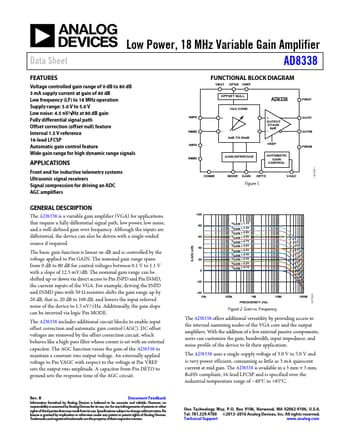

PDF File Details

Part number:

AD8338

Manufacturer:

Analog Devices ↗

File Size:

498.97kb

Download:

📄 Datasheet

Description:

18mhz variable gain amplifier. The AD8338 is a variable gain amplifier (VGA) for applications that require a fully differential signal path, low power, low noise, a

AD8338 Application

• Applications Front end for inductive telemetry systems Ultrasonic signal receivers Signal compression for driving an ADC AGC amplifiers INPR INMR I
