AD8341 - 1.5GHz to 2.4GHz RF Vector Modulator

Datasheet Summary

Description

The AD8341 vector modulator performs arbitrary amplitude and phase modulation of an RF signal.

Since the RF signal path is linear, the original modulation is preserved.

This part can be used as a general-purpose RF modulator, a variable attenuator/phase shifter, or a remodulator.

Features

  • Cartesian amplitude and phase modulation 1.5 GHz to 2.4 GHz frequency range Continuous magnitude control of.
  • 4.5 dB to.
  • 34.5 dB Continuous phase control of 0° to 360° Output third-order intercept 17.5 dBm Output 1 dB compression point 8.5 dBm Output noise floor.
  • 150.5 dBm/Hz @ full gain Adjustable modulation bandwidth up to 230 MHz Fast output power disable 4.75 V to 5.25 V single-supply voltage 1.5 GHz to 2.4 GHz RF Vector Modulator AD8341.

📥 Download Datasheet

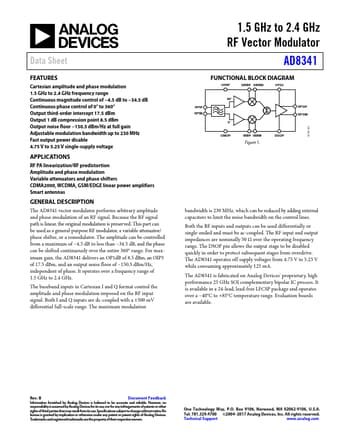

Datasheet preview – AD8341

Datasheet Details

Part number AD8341
Manufacturer Analog Devices
File Size 633.99 KB
Description 1.5GHz to 2.4GHz RF Vector Modulator
Datasheet download datasheet AD8341 Datasheet
Additional preview pages of the AD8341 datasheet.

📁 Similar Datasheet

  • AD8356A - 2.1-Channel Digital Audio Amplifier (ESMT)
  • AD83582 - 10W x 2 + 20W 2.1CH Digital Audio Amplifier (Elite Semiconductor)
  • AD83584D - 2 x 25W Stereo / 1 x 50W Mono Digital Audio Amplifier (ESMT)
  • AD83586 - 2.1CH Digital Audio Amplifier (Elite Semiconductor)
  • AD83586B - 2.1CH Digital Audio Amplifier (ESMT)
  • AD83586C - 2x60W Stereo / 1x120W Mono / 2x30W+1x60W 2.1CH Digital Audio Amplifier (ESMT)
  • AD82010 - Mono Filter-less Digital Audio Amplifier (ESMT)
  • AD82050 - Mono Digital Audio Amplifier (ESMT)
  • AD82088 - Mono Digital Audio Amplifier (ESMT)
  • AD82088D - 2x25W Stereo / 1x50W Mono Digital Audio Amplifier (ESMT)
Other Datasheets by Analog Devices
  • AD834 - 500 MHz Four-Quadrant Multiplier
  • AD8340 - RF Vector Modulator
  • AD8342 - Active Receive Mixer
  • AD8343 - DC-to-2.5 GHz High IP3 Active Mixer
  • AD8344 - 400MHz to 1.2GHz Active Receive Mixer
  • AD8345 - 140 MHz to 1000 MHz Quadrature Modulator
  • AD8346 - 0.8 GHz-2.5 GHz Quadrature Modulator
  • AD8347 - 0.8 GHz to 2.7 GHz Direct Conversion Quadrature Demodulator

Full PDF Text Transcription

Click to expand full text
Data Sheet FEATURES Cartesian amplitude and phase modulation 1.5 GHz to 2.4 GHz frequency range Continuous magnitude control of −4.5 dB to −34.5 dB Continuous phase control of 0° to 360° Output third-order intercept 17.5 dBm Output 1 dB compression point 8.5 dBm Output noise floor −150.5 dBm/Hz @ full gain Adjustable modulation bandwidth up to 230 MHz Fast output power disable 4.75 V to 5.25 V single-supply voltage 1.5 GHz to 2.4 GHz RF Vector Modulator AD8341 FUNCTIONAL BLOCK DIAGRAM VPRF QBBP QBBM VPS2 90° RFIP RFIM 0° 04700-001 RFOP RFOM CMOP IBBP IBBM DSOP Figure 1.
