ADF5001 - 4 GHz to 18 GHz Divide-by-4 Prescaler

The ADF5001 prescaler is a low noise, low power, fixed RF divider block that can be used to divide down frequencies as high as 18 GHz to a lower frequency suitable for input into a PLL IC, such as the ADF4156 or ADF4106. The ADF5001 provides a divide-by-4 function. The ADF5001 operates off a 3.3 V s.

ADF5001 Features

* Divide-by-4 prescaler High frequency operation: 4 GHz to 18 GHz Integrated RF decoupling capacitors Low power consumption Active mode: 30 mA Power-down mode: 7 mA Low phase noise:

* 150 dBc/Hz Single dc supply: 3.3 V compatible with ADF4xxx PLLs Temperature range:

* 40oC to +105oC Smal

ADF5001_AnalogDevices.pdf

Preview of ADF5001 PDF

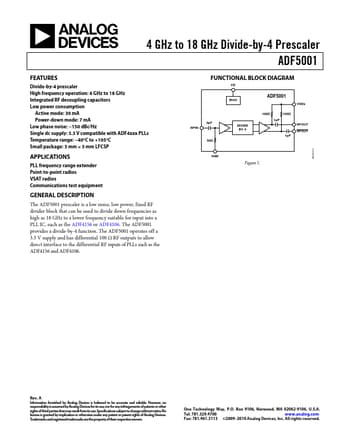

ADF5001 Datasheet Preview Page 2 ADF5001 Datasheet Preview Page 3

Datasheet Details

Part number:

ADF5001

Manufacturer:

Analog Devices ↗

File Size:

262.22 KB

Description:

4 ghz to 18 ghz divide-by-4 prescaler.
