ADF7901

High Performance ISM Band OOK/FSK Transmitter

ADF7901 Features

* Single-chip, low power UHF transmitter 369.5 MHz to 395.9 MHz frequency operation using fractional-N PLL and fully integrated VCO 3.0 V supply voltage Data rates up to 50 kbps supported Low current consumption 26 mA at 12 dBm output at 384 MHz Power-down mode (

ADF7901 General Description

The ADF7901 is a low power OOK/FSK UHF transmitter designed for use in RF remote control devices. It is capable of frequency shift keying (FSK) modulation on eight different channels, selectable by three external control lines. OOK modulation is performed by modulating the PA control line. The on-ch.

ADF7901 Datasheet (247.80 KB)

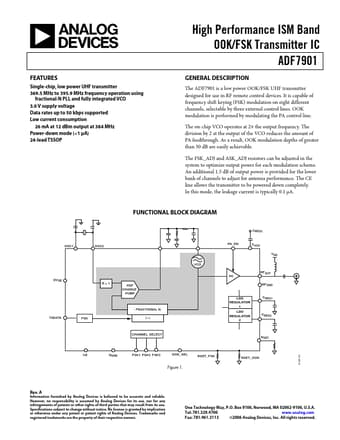

Preview of ADF7901 PDF

Datasheet Details

Part number:

ADF7901

Manufacturer:

Analog Devices ↗

File Size:

247.80 KB

Description:

High performance ism band ook/fsk transmitter.

📁 Related Datasheet

ADF7902 - ISM Band FSK Receiver (Analog Devices)
FEATURES Single-chip, low power UHF receiver Companion receiver to ADF7901 transmitter Frequency range: 369.5 MHz to 395.9 MHz Eight RF channels selec.
