ADF7902 Datasheet, Receiver, Analog Devices

ADF7902 Features

  • Receiver Single-chip, low power UHF receiver Companion receiver to ADF7901 transmitter Frequency range: 369.5 MHz to 395.9 MHz Eight RF channels selectable with three digital inputs Modulation p

PDF File Details

Part number:

ADF7902

Manufacturer:

Analog Devices ↗

File Size:

274.17kb

Download:

📄 Datasheet

Description:

Ism band fsk receiver. The ADF7902 is a low power UHF receiver. The device demodulates frequency shift keyed (FSK) signals with 34.8 kHz frequency deviation

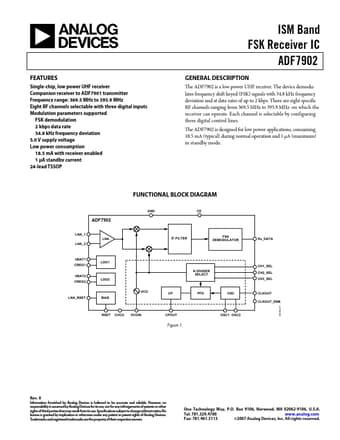

Datasheet Preview: ADF7902 📥 Download PDF (274.17kb)
Page 2 of ADF7902 Page 3 of ADF7902

ADF7902 Application

  • Applications consuming 18.5 mA (typical) during normal operation and 1 μA (maximum) in standby mode. ADF7902 LNA_1 LNA_2 LNA VBAT1 CREG1 VBAT2
