ADG1414 Datasheet, switches equivalent, Analog Devices

ADG1414 Features

• Switches SPI interface Supports daisy-chain mode 9.5 Ω on resistance at 25°C and ±15 V dual supply 1.6 Ω on-resistance flatness at 25°C and ±15 V dual supply Fully specified at ±15 V, +12 V, ±5

PDF File Details

Part number:

ADG1414

Manufacturer:

Analog Devices ↗

File Size:

523.92kb

Download:

📄 Datasheet

Description:

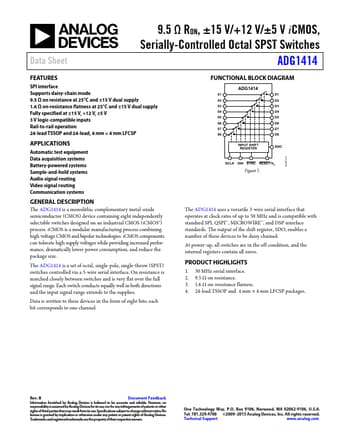

Serially-controlled octal spst switches. The ADG1414 is a monolithic complementary metal-oxide semiconductor (CMOS) device containing eight independently selectable switches

ADG1414 Application

• Applications Automatic test equipment Data acquisition systems Battery-powered systems Sample-and-hold systems Audio signal routing Video signal rou
