ADG211A Datasheet, Switches, Analog Devices

ADG211A Features

  • Switches 44 V supply maximum rating ±15 V analog signal range Low RON: 115 Ω maximum Low leakage: 0.5 nA typical Break-before-make switching Single supply operation possible Extended plastic tem

PDF File Details

Part number:

ADG211A

Manufacturer:

Analog Devices ↗

File Size:

306.30kb

Download:

📄 Datasheet

Description:

Lc2mos quad spst switches. The ADG211A and ADG212A are monolithic CMOS devices comprising four independently selectable switches. They are designed on an enhanc

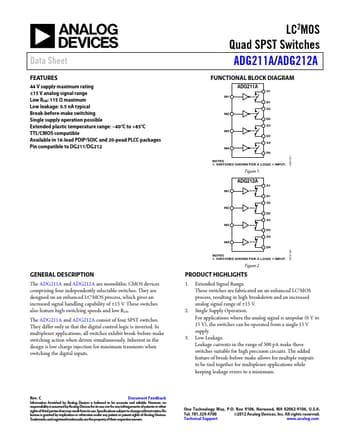

Datasheet Preview: ADG211A 📥 Download PDF (306.30kb)
Page 2 of ADG211A Page 3 of ADG211A

ADG211A Application

  • Applications all switches exhibit break-before-make switching action when driven simultaneously. Inherent in the design is low charge injection for
