ADG2188

CMOS 8 x 8 Unbuffered Analog Switch Array

ADG2188 Features

* I2C-compatible interface 3.4 MHz high speed I2C option 32-lead LFCSP_WQ (5 mm × 5 mm) Double-buffered input logic Simultaneous update of multiple switches Up to 300 MHz bandwidth Fully specified at dual ±5 V/single +12 V operation On resistance 35 Ω maximum Low quiescent current < 20 µA Qualified fo

ADG2188 General Description

The ADG2188 is an analog cross point switch with an array size of 8 × 8. The switch array is arranged so that there are eight columns by eight rows, for a total of 64 switch channels. The array is bidirectional, and the rows and columns can be configured as either inputs or outputs. Each of the 64 s.

ADG2188 Datasheet (558.00 KB)

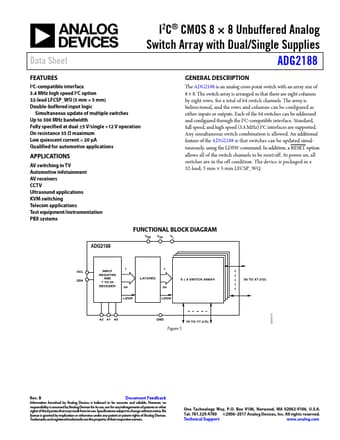

Preview of ADG2188 PDF

Datasheet Details

Part number:

ADG2188

Manufacturer:

Analog Devices ↗

File Size:

558.00 KB

Description:

Cmos 8 x 8 unbuffered analog switch array.
