ADG3241

2-Port Level Translator Bus Switch

ADG3241 Features

* 225 ps propagation delay through the switch 4.5 Ω switch connection between ports Data rate 1.5 Gbps 2.5 V/3.3 V supply operation Selectable level shifting/translation Level translation 3.3 V to 2.5 V 3.3 V to 1.8 V 2.5 V to 1.8 V Small signal bandwidth 770 MHz Tiny 6-lead SC70 package and 6-lead SO

ADG3241 General Description

The ADG3241 is a 2.5 V or 3.3 V single digital switch. It is designed on a low voltage CMOS process that provides low power dissipation yet gives high switching speed and very low on resistance. This allows the input to be connected to the output without additional propagation delay or generating ad.

ADG3241 Datasheet (284.94 KB)

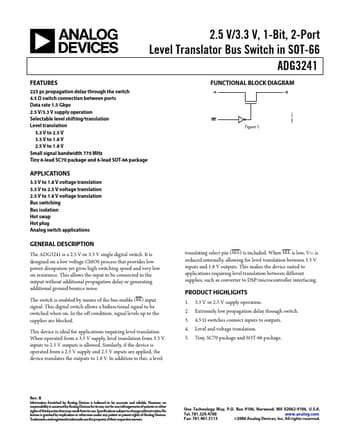

Preview of ADG3241 PDF

Datasheet Details

Part number:

ADG3241

Manufacturer:

Analog Devices ↗

File Size:

284.94 KB

Description:

2-port level translator bus switch.
