ADG3242 Datasheet - Analog Devices

ADG3242 2-Bit Common Control Level Translator Bus Switch

The ADG3242 is a 2.5 V or 3.3 V, 2-bit, 2-port, common control digital switch. It is designed on a low voltage CMOS process, and provides low power dissipation, yet gives high switching speed and very low on resistance. This allows the inputs to be connected to the outputs without additional propaga.

ADG3242 Features

* 225 ps propagation delay through the switch 4.5 Ω switch connection between ports Data rate 1.5 Gbps 2.5 V/3.3 V supply operation Selectable level shifting/translation Level translation 3.3 V to 2.5 V 3.3 V to 1.8 V 2.5 V to 1.8 V Small signal bandwidth 710 MHz 8-lead SOT-23 package APPLICATIONS 3.3

ADG3242 Datasheet (348.43 KB)

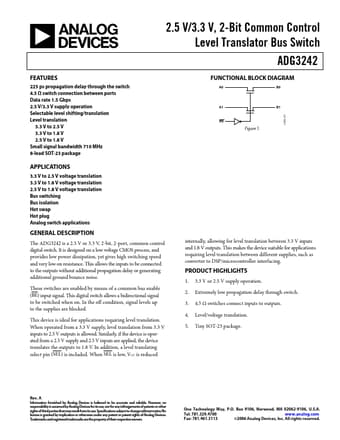

Preview of ADG3242 PDF

Datasheet Details

Part number:

ADG3242

Manufacturer:

Analog Devices ↗

File Size:

348.43 KB

Description:

2-bit common control level translator bus switch.
