ADG528F Datasheet, Multiplexer, Analog Devices

ADG528F Features

  • Multiplexer Low on resistance (300 Ω typical) Fast switching times tON: 250 ns maximum tOFF: 250 ns maximum Low power dissipation (3.3 mW maximum) Fault and overvoltage protection (
  • 40 V to

PDF File Details

Part number:

ADG528F

Manufacturer:

Analog Devices ↗

File Size:

280.24kb

Download:

📄 Datasheet

Description:

8-channel fault-protected analog multiplexer. The ADG528F1 is a CMOS analog multiplexer, with the comprising eight single channels. This multiplexer provides fault protection. Usi

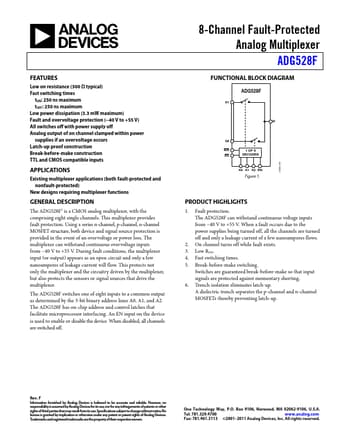

Datasheet Preview: ADG528F 📥 Download PDF (280.24kb)
Page 2 of ADG528F Page 3 of ADG528F

ADG528F Application

  • Applications Existing multiplexer applications (both fault-protected and nonfault-protected) New designs requiring multiplexer functions GENERAL DES
