ADG608 Datasheet, Multiplexers, Analog Devices

ADG608 Features

• Multiplexers +3 V, +5 V, ؎ 5 V Power Supplies VSS to VDD Analog Signal Range Low On Resistance (30 ⍀ max) Fast Switching Times t ON 75 ns max t OFF 45 ns max Low Power Dissipation (1.5 ␮W max) Break

PDF File Details

Part number:

ADG608

Manufacturer:

Analog Devices ↗

File Size:

158.26kb

Download:

📄 Datasheet

Description:

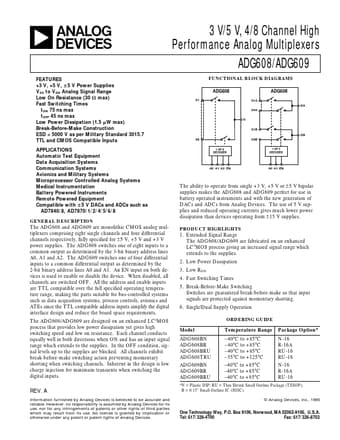

3 v/5 v/ 4/8 channel high performance analog multiplexers. 3 V/5 V, 4/8 Channel High Performance Analog Multiplexers ADG608/ADG609 FUNCTIONAL BLOCK DIAGRAMS ADG608 S1 S1A DA S4A D S1B DB S8 1

ADG608 Application

• Applications Automatic Test Equipment Data Acquisition Systems Communication Systems Avionics and Military Systems Microprocessor Controlled Analog
