ADG6412 Datasheet, Switch, Analog Devices

ADG6412 Features

  • Switch
  • Low RON 0.5 Ω
  • High continuous current of up to 847 mA
  • Flat RON across signal range, 0.003 Ω
  • THD of
      –127 dB at 1 kHz
  • Imp

PDF File Details

Part number:

ADG6412

Manufacturer:

Analog Devices ↗

File Size:

756.16kb

Download:

📄 Datasheet

Description:

Quad spst switch. The ADG6412 contains four independent single-pole/single-throw (SPST) switches. The ADG6412 switches turn on with logic 1 on the digi

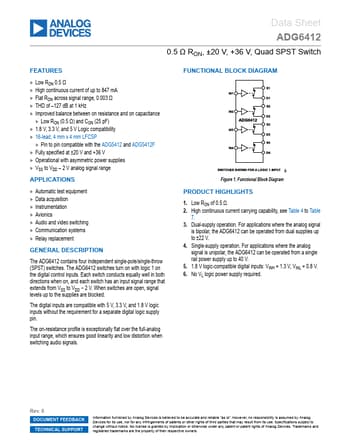

Datasheet Preview: ADG6412 📥 Download PDF (756.16kb)
Page 2 of ADG6412 Page 3 of ADG6412

ADG6412 Application

  • Applications
  • Automatic test equipment
  • Data acquisition
  • Instrumentation
  • Avionics
  • Audio and video sw
