ADG787 Datasheet, Switch, Analog Devices

ADG787 Features

  • Switch USB 1.1 signal switching compliant
  • 3 dB bandwidth, 150 MHz Tiny 10-lead LFCSP and MSOP packages, 10-ball WLCSP package Single-supply 1.8 V to 5.5 V operation Low on resistance

PDF File Details

Part number:

ADG787

Manufacturer:

Analog Devices ↗

File Size:

354.12kb

Download:

📄 Datasheet

Description:

2.5 ohm cmos low power dual 2:1 mux/demux usb1.1 switch. The ADG787 is a low voltage, CMOS device that contains two independently selectable single-pole, double-throw (SPDT) switches. It is

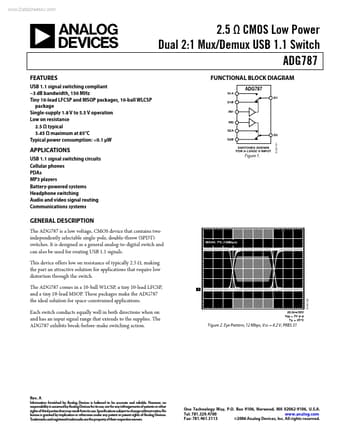

Datasheet Preview: ADG787 📥 Download PDF (354.12kb)
Page 2 of ADG787 Page 3 of ADG787

ADG787 Application

  • Applications USB 1.1 signal switching circuits Cellular phones PDAs MP3 players Battery-powered systems Headphone switching Audio and video signal r
