ADG782, 2.5 ohm Quad SPST Switches in Chip Scale Package

a .
PRODUCT HIGHLIGHTS The ADG781, ADG782, and ADG783 are monolithic CMOS devices containing four independently selectable switches.

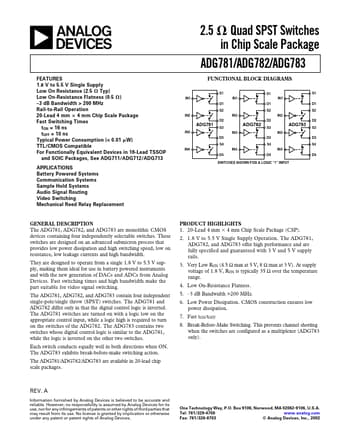

datasheet Preview Page 1 from Datasheet4u.com

ADG782_AnalogDevices.pdf

ADG782 Datasheet Preview — Preview of ADG782 PDF

Datasheet Details

Part number:

ADG782

Manufacturer:

Analog Devices ↗

File Size:

169.99 KB

Description:

2.5 ohm Quad SPST Switches in Chip Scale Package

Features

* 1.8 V to 5.5 V Single Supply Low On Resistance (2.5 ⍀ Typ) Low On-Resistance Flatness (0.5 ⍀)
* 3 dB Bandwidth > 200 MHz Rail-to-Rail Operation 20-Lead 4 mm ؋ 4 mm Chip Scale Package Fast Switching Times t ON = 16 ns t OFF = 10 ns Typical Power Consumption (< 0.01 ␮W) TTL/CMOS Compatible For

Applications

* Battery Powered Systems Communication Systems Sample Hold Systems Audio Signal Routing Video Switching Mechanical Reed Relay Replacement IN1 IN2 2.5 ⍀ Quad SPST Switches in Chip Scale Package ADG781/ADG782/ADG783 FUNCTIONAL BLOCK DIAGRAMS S1 IN1 S1 IN1 S1 D1 S2 IN2 D2 S3 D3 S4 IN4 D4 D1 S2 IN2 D1
