ADG802, <0.5 ohm CMOS/ Low Voltage/ SPST Switches

PRELIMINARY TECHNICAL DATA a .
PRODUCT HIGHLIGHTS The ADG801/ADG802 are monolithic CMOS SPST (Single Pole, Single Throw) switches with On Resistance of less than 0.

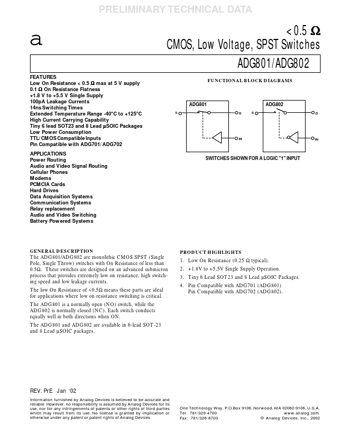

datasheet Preview Page 1 from Datasheet4u.com

ADG802_AnalogDevices.pdf

ADG802 Datasheet Preview — Preview of ADG802 PDF

Datasheet Details

Part number:

ADG802

Manufacturer:

Analog Devices ↗

File Size:

76.46 KB

Description:

<0.5 ohm CMOS/ Low Voltage/ SPST Switches

Features

* Low On Resistance < 0.5 Ω max at 5 V supply 0.1 Ω On Resistance Flatness +1.8 V to +5.5 V Single Supply 100pA Leakage Currents 14ns Switching Times Extended Temperature Range -40oC to +125oC High Current Carrying Capability Tiny 6 lead SOT23 and 8 Lead µSOIC Packages Low Power Consumption TTL/CMOS C

Applications

* Power Routing Audio and Video Signal Routing Cellular Phones Modems PCMCIA Cards Hard Drives Data Acquisition Systems Communication Systems Relay replacement Audio and Video Switching Battery Powered Systems
