ADG804 Datasheet, Multiplexer, Analog Devices

ADG804 Features

  • Multiplexer 0.5 Ω typical on resistance 0.8 Ω maximum on resistance at 125°C 1.65 V to 3.6 V operation Automotive temperature range:
      –40°C to +125°C High current carrying capability

PDF File Details

Part number:

ADG804

Manufacturer:

Analog Devices ↗

File Size:

223.02kb

Download:

📄 Datasheet

Description:

4-channel multiplexer. The ADG804 is a low voltage 4-channel CMOS multiplexer comprising four single channels. This device offers ultralow on resistance of

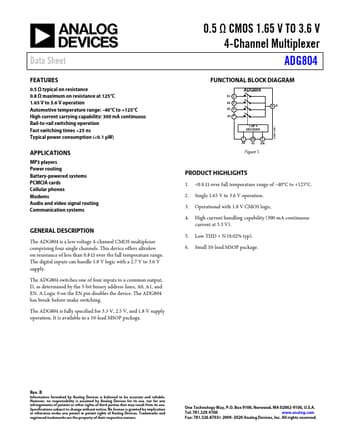

Datasheet Preview: ADG804 📥 Download PDF (223.02kb)
Page 2 of ADG804 Page 3 of ADG804

ADG804 Application

  • Applications MP3 players Power routing Battery-powered systems PCMCIA cards Cellular phones Modems Audio and video signal routing Communication syst

TAGS

ADG804
4-Channel
Multiplexer
Analog Devices
