ADIS16545

Six Degrees of Freedom Inertial Sensors

Analog Devices

ADIS16545 Features

* Triaxial, digital gyroscope

* ±125°/sec, ±450°/sec, ±2000°/sec dynamic range options

* ±0.15° axis to axis misalignment error (1 σ)

* ±0.15° axis to package misalignment error (1 σ)

* 0.5°/hr in run bias stability (1 σ, ADIS16545-1BMLZ, ADIS16547-1BMLZ)

* 0.07°/√hr angular

ADIS16545 General Description

The ADIS16545/ADIS16547 are a complete inertial system that includes a triaxis gyroscope and a triaxis accelerometer. Each inertial sensor in the ADIS16545/ADIS16547 combines with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivit.

ADIS16545 Datasheet (2.79 MB)

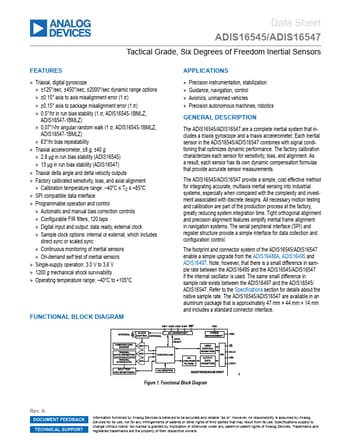

ADIS16545 Datasheet Preview — Preview of ADIS16545 PDF

Datasheet Details

Part number:

ADIS16545

Manufacturer:

Analog Devices ↗

File Size:

2.79 MB

Description:

Six degrees of freedom inertial sensors.
