ADL5317

Avalanche Photodiode Bias Controller and Wide Range

ADL5317 Features

* Accurately sets avalanche photodiode (APD) bias voltage Wide bias range from 6 V to 75 V 3 V-compatible control interface Monitors photodiode current (5:1 ratio) over six decades Linearity 0.25% from 10 nA to 1 mA, 0.5% from 5 nA to 5 mA Overcurrent protection and overtemperature shutdown Miniature

ADL5317 General Description

The ADL5317 is a high voltage, wide dynamic range, biasing and current monitoring device optimized for use with avalanche photodiodes. When used with a stable high voltage supply (up to 80 V), the bias voltage at the VAPD pin can be varied from 6 V to 75 V using the 3 V-compatible VSET pin. The curr.

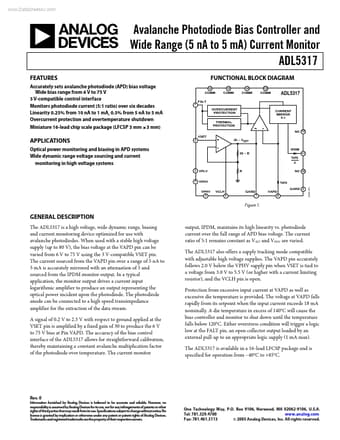

ADL5317 Datasheet (492.06 KB)

Preview of ADL5317 PDF

Datasheet Details

Part number:

ADL5317

Manufacturer:

Analog Devices ↗

File Size:

492.06 KB

Description:

Avalanche photodiode bias controller and wide range.
