ADL5323

GaAs Matched RF PA Predriver

ADL5323 Features

* Internally matched to 50 Ω input and output Internally biased Operating frequency: 1700 MHz to 2400 MHz Gain: 20 dB OIP3: 43 dBm P1 dB: 28 dBm Noise figure: 5 dB 3 mm × 3 mm LFCSP Power supply: 5 V APPLICATIONS CDMA2000, WCDMA, and GSM base station transceivers and high power amplifiers GENERAL DESC

ADL5323 General Description

The ADL5323 is a high linearity GaAs driver amplifier that is internally matched to 50 Ω for operation in the 1700 MHz to 2400 MHz frequency range. The amplifier, which has a gain of 20 dB, has been specially designed for use in the output stage of a cellular base station radio or as an input preamp.

ADL5323 Datasheet (193.56 KB)

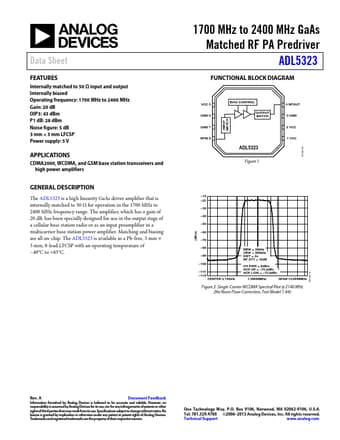

Preview of ADL5323 PDF

Datasheet Details

Part number:

ADL5323

Manufacturer:

Analog Devices ↗

File Size:

193.56 KB

Description:

Gaas matched rf pa predriver.
