ADL5532 Datasheet, Blocks, Analog Devices

ADL5532 Features

  • Blocks Fixed gain of 15 dB Operation up to 500 MHz +39.1 dBm OIP3 at 70 MHz Noise Figure 3.0 dB at 70 MHz Input/output internally matched to 50 Ω Temperature and power supply stable Power supp

PDF File Details

Part number:

ADL5532

Manufacturer:

Analog Devices ↗

File Size:

246.97kb

Download:

📄 Datasheet

Description:

If gain blocks. The ADL5532 is a broadband, fixed-gain, linear amplifier that operate at frequencies up to 500 MHz. The device can be used in a wide

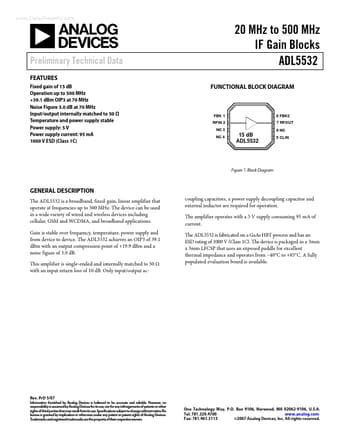

Datasheet Preview: ADL5532 📥 Download PDF (246.97kb)
Page 2 of ADL5532 Page 3 of ADL5532

ADL5532 Application

  • Applications Gain is stable over frequency, temperature, power supply and from device to device. The ADL5532 achieves an OIP3 of 39.1 dBm with an o
