ADL5535 Datasheet, Block, Analog Devices

ADL5535 Features

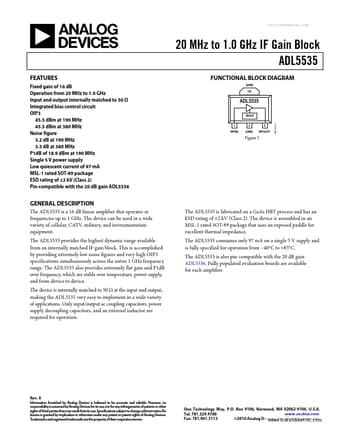

• Block Fixed gain of 16 dB Operation from 20 MHz to 1.0 GHz Input and output internally matched to 50 Ω Integrated bias control circuit OIP3 45.5 dBm at 190 MHz 45.5 dBm at 380 MHz Noise figur

PDF File Details

Part number:

ADL5535

Manufacturer:

Analog Devices ↗

File Size:

611.75kb

Download:

📄 Datasheet

Description:

20 mhz to 1.0 ghz if gain block. The ADL5535 is a 16 dB linear amplifier that operates at frequencies up to 1 GHz. The device can be used in a wide variety of cellula

ADL5535 Application

• Applications Only input/output ac coupling capacitors, power supply decoupling capacitors, and an external inductor are required for operation. The
