ADL5961

9kHz to 26.5GHz Integrated Vector Network Analyzer Front End

ADL5961 Features

* FUNCTIONAL BLOCK DIAGRAM

* Wideband integrated bidirectional bridge

* Raw directivity: 35.6 dB at 1 GHz, 16.7 dB at 18 GHz

* Low insertion loss: 1.1 dB at 1 GHz, 2.0 dB at 18 GHz

* Return loss: >12 dB typical

* SPI configurable LO interface

* Divide by 2; multiply by 1, 2,

ADL5961 General Description

The ADL5961 is a wideband, small form factor, vector network analyzer (VNA) front end consisting of a resistive bidirectional bridge, downconversion mixers, programmable IF amplifiers and filters, and a highly flexible local oscillator (LO) interface. The bridge provides >14 dB of directivity up to .

ADL5961 Datasheet (2.08 MB)

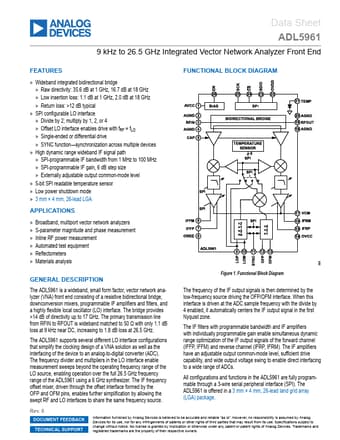

Preview of ADL5961 PDF

Datasheet Details

Part number:

ADL5961

Manufacturer:

Analog Devices ↗

File Size:

2.08 MB

Description:

9khz to 26.5ghz integrated vector network analyzer front end.
