ADM1051 - Precision Dual Voltage Regulator Controllers

Datasheet Summary

Description

The ADM1051/ADM1051A are dual, precision, voltage regulator controllers intended for power rail generation and active bus termination on personal computer motherboards.

They contain a precision 1.2 V bandgap reference and two channels consisting of control amplifiers driving external power devices.

Features

  • Two Independent Controllers on One Chip 1.515 V and 1.818 V Outputs Shutdown Inputs to Control Each Channel Compatible with PC Motherboard.

📥 Download Datasheet

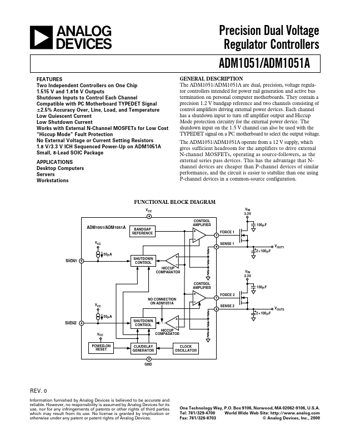

Datasheet preview – ADM1051

Datasheet Details

Part number ADM1051
Manufacturer Analog Devices
File Size 173.14 KB
Description Precision Dual Voltage Regulator Controllers
Datasheet download datasheet ADM1051 Datasheet
Additional preview pages of the ADM1051 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices
  • ADM1051A - Precision Dual Voltage Regulator Controllers
  • ADM1052 - Precision Dual Voltage Regulator Controller
  • ADM101 - Craft Port Tiny RS-232 Transceiver
  • ADM1014 - Dual PCI Hot-PlugTM Controller
  • ADM101E - Craft Port Tiny RS-232 Transceiver
  • ADM1020 - 8-Lead/ Low-Cost/ System Temperature Monitor
  • ADM1021 - Low Cost Microprocessor System Temperature Monitor
  • ADM1021A - System Temperature Monitor Microcomputer

Full PDF Text Transcription

Click to expand full text
a Precision Dual Voltage Regulator Controllers ADM1051/ADM1051A FEATURES Two Independent Controllers on One Chip 1.515 V and 1.818 V Outputs Shutdown Inputs to Control Each Channel Compatible with PC Motherboard TYPEDET Signal ؎2.5% Accuracy Over, Line, Load, and Temperature Low Quiescent Current Low Shutdown Current Works with External N-Channel MOSFETs for Low Cost “Hiccup Mode” Fault Protection No External Voltage or Current Setting Resistors 1.8 V/3.3 V ICH Sequenced Power-Up on ADM1051A Small, 8-Lead SOIC Package APPLICATIONS Desktop Computers Servers Workstations GENERAL DESCRIPTION The ADM1051/ADM1051A are dual, precision, voltage regulator controllers intended for power rail generation and active bus termination on personal computer motherboards. They contain a precision 1.
