ADM1051A - Precision Dual Voltage Regulator Controllers

Datasheet Summary

Description

The ADM1051/ADM1051A are dual, precision, voltage regulator controllers intended for power rail generation and active bus termination on personal computer motherboards.

They contain a precision 1.2 V bandgap reference and two channels consisting of control amplifiers driving external power devices.

Features

  • Two Independent Controllers on One Chip 1.515 V and 1.818 V Outputs Shutdown Inputs to Control Each Channel Compatible with PC Motherboard.

📥 Download Datasheet

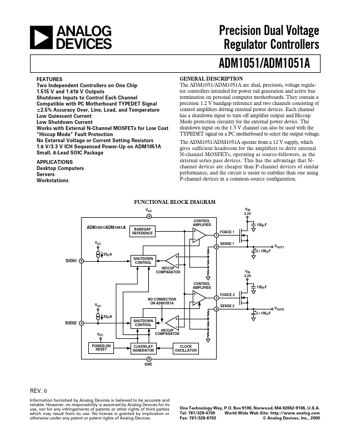

Datasheet preview – ADM1051A

Datasheet Details

Part number ADM1051A
Manufacturer Analog Devices
File Size 176.21 KB
Description Precision Dual Voltage Regulator Controllers
Datasheet download datasheet ADM1051A Datasheet
