ADM1810, ADM1818, Voltage Monitoring

Data Sheet Microprocessor Reset Circuits ADM1810 to ADM1813/ADM1815 to ADM1818 .
The ADM181x range of voltage monitoring circuits is used in any application where an electronic system needs to be reset when a voltage increases abov.

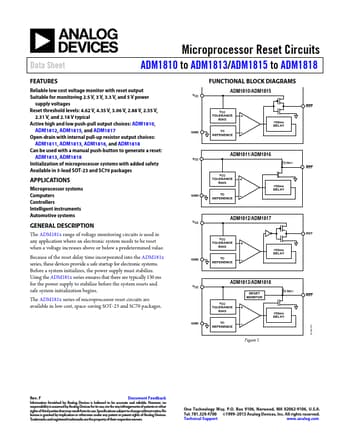

datasheet Preview Page 1 from Datasheet4u.com

ADM1818-AnalogDevices.pdf

ADM1810 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADM1810, ADM1818. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADM1810, ADM1818

Manufacturer:

Analog Devices ↗

File Size:

233.84 KB

Description:

Voltage Monitoring

Note:

This datasheet PDF includes multiple part numbers: ADM1810, ADM1818.
Please refer to the document for exact specifications by model.

Features

* Reliable low cost voltage monitor with reset output Suitable for monitoring 2.5 V, 3 V, 3.3 V, and 5 V power supply voltages Reset threshold levels: 4.62 V, 4.35 V, 3.06 V, 2.88 V, 2.55 V, 2.31 V, and 2.18 V typical Active high and low push-pull output choices: ADM1810, ADM1812, ADM1815, and ADM1817
