ADM1815

Voltage Monitoring

ADM1815 Features

* Reliable low cost voltage monitor with reset output Suitable for monitoring 2.5 V, 3 V, 3.3 V, and 5 V power supply voltages Reset threshold levels: 4.62 V, 4.35 V, 3.06 V, 2.88 V, 2.55 V, 2.31 V, and 2.18 V typical Active high and low push-pull output choices: ADM1810, ADM1812, ADM1815, and ADM1817

ADM1815 General Description

The ADM181x range of voltage monitoring circuits is used in any application where an electronic system needs to be reset when a voltage increases above or below a predetermined value. Because of the reset delay .

ADM1815 Datasheet (233.84 KB)

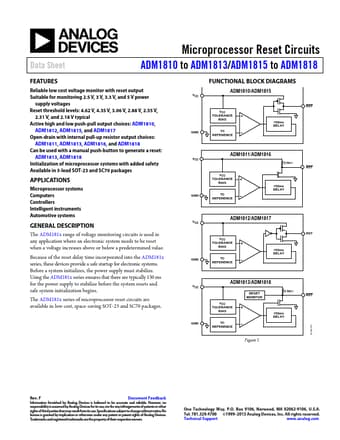

Preview of ADM1815 PDF

Datasheet Details

Part number:

ADM1815

Manufacturer:

Analog Devices ↗

File Size:

233.84 KB

Description:

Voltage monitoring.
