ADM485 Datasheet, transceiver equivalent, Analog Devices

ADM485 Features

  • Transceiver Meets EIA RS-485 standard 5 Mbps data rate Single 5 V supply
      –7 V to +12 V bus common-mode range High speed, low power BiCMOS Thermal shutdown protection Short-circuit p

PDF File Details

Part number:

ADM485

Manufacturer:

Analog Devices ↗

File Size:

502.78kb

Download:

📄 Datasheet

Description:

5v low power eia rs-485 transceiver. The ADM485 is a differential line transceiver suitable for high speed bidirectional data communication on multipoint bus transmission

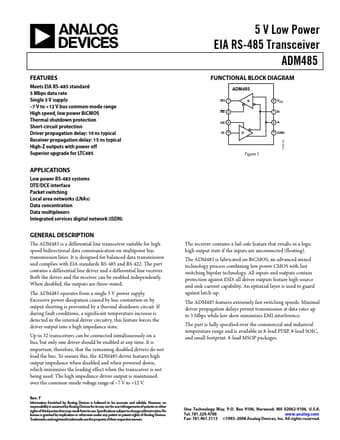

Datasheet Preview: ADM485 📥 Download PDF (502.78kb)
Page 2 of ADM485 Page 3 of ADM485

ADM485 Application

  • Applications Low power RS-485 systems DTE/DCE interface Packet switching Local area networks (LNAs) Data concentration Data multiplexers Integrated
