ADM4850, Half-Duplex and Full-Duplex RS-485/RS-422 Transceivers

5 V, Slew-Rate Limited, Half-Duplex and Full-Duplex RS-485/RS-422 Transceivers ADM4850/ADM4851/ADM4852/ADM4853/ADM4854/ADM4855/ADM4856/ADM4857 .
The ADM4850/ADM4851/ADM4852/ADM4853/ADM4854/ ADM4855/ADM4856/ADM4857 are differential line transceivers suitable for high speed half- and full-duplex.

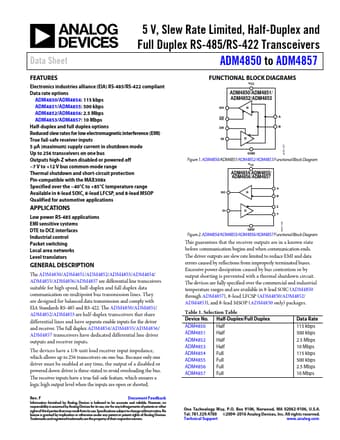

datasheet Preview Page 1 from Datasheet4u.com

ADM4850-AnalogDevices.pdf

ADM4850 Datasheet Preview — Preview of ADM4850 PDF

Datasheet Details

Part number:

ADM4850

Manufacturer:

Analog Devices ↗

File Size:

368.44 KB

Description:

Half-Duplex and Full-Duplex RS-485/RS-422 Transceivers

Features

* EIA RS-485-/RS-422-compliant Data rate options ADM4850/ADM4854: 115 kbps ADM4851/ADM4855: 500 kbps ADM4852/ADM4856: 2.5 Mbps ADM4853/ADM4857: 10 Mbps Half- and full-duplex options Reduced slew rates for low EMI True fail-safe receiver inputs 5 μA (maximum) supply current in shutdown mode Up to 256 t

Applications

* FUNCTIONAL BLOCK DIAGRAMS VCC ADM4850/ADM4851/ ADM4852/ADM4853 RO RE DE DI D 04931-001 R A B GND Figure 1. VCC ADM4854/ADM4855/ ADM4856/ADM4857 A RO R B Z DI D Y 04931-028 APPLICATIONS Low power RS-485 applications EMI-sensitive systems DTE-DCE interfaces Industrial control Packet switching L
