ADM5170

Octal/ RS-232/RS-423 Line Driver

ADM5170 Features

* Eight Single Ended Line Drivers in One Package Meets EIA Standard RS-232E, RS-423A and CCITT V.10/X.26 Resistor Programmable Slew Rate Wide Supply Voltage Range Low Power CMOS 3-State Outputs TTL/CMOS Compatible Inputs Output Short Circuit Protection Available in 28-Pin DIP/PLCC Low Power Replacemen

ADM5170 General Description

The ADM5170 is an octal line driver suitable for digital communication systems with data rates up to 116 kB/s. Input TTL or CMOS signal levels are inverted and translated into either EIA RS-232E or RS-423A signal levels depending on the status of the Mode Select inputs MS+ and MS

*. With both.

ADM5170 Datasheet (133.98 KB)

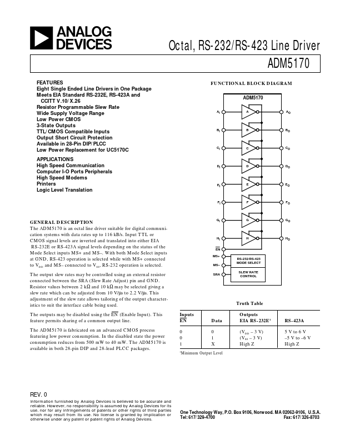

Preview of ADM5170 PDF

Datasheet Details

Part number:

ADM5170

Manufacturer:

Analog Devices ↗

File Size:

133.98 KB

Description:

Octal/ rs-232/rs-423 line driver.
