ADM5180

Octal/ RS-232/RS-423 Line Receiver

ADM5180 Features

* Eight Differential Line Receivers in One Package Meets EIA Standard EIA-232E, 423A, 422A and CCITT V.10, V.11, V.28 Single +5 V Supply Differential Inputs Withstand ± 25 V Internal Hysteresis Low Power CMOS

* 3.5 mA Supply Current TTL/CMOS Compatible Outputs Available in 28-Pin DIP and PLCC P

ADM5180 General Description

The ADM5180 is an octal differential line receiver suitable for a wide range of digital communication systems with data rates up to 200 kB/s. Input signals conforming to EIA Standards 232-E, 422A and CCITT V.10, V.11, V.28, X.26, and X.27 are accepted and translated into TTL /CMOS output signal leve.

ADM5180 Datasheet (101.55 KB)

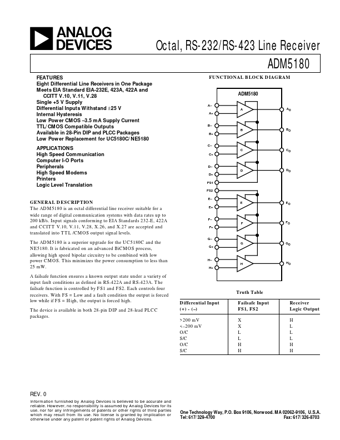

Preview of ADM5180 PDF

Datasheet Details

Part number:

ADM5180

Manufacturer:

Analog Devices ↗

File Size:

101.55 KB

Description:

Octal/ rs-232/rs-423 line receiver.
