ADM802M, ADM Microprocessor Supervisory Circuits

Analog Devices

Description

a Microprocessor Supervisory Circuits ADM690A/ADM692A/ADM802L/M/ADM805L/M FUNCTIONAL BLOCK DIAGRAM VBATT BATTERY SWITCHOVER VCC VOUT .
The ADM690A/ADM692A/ADM802L/M/ADM805L/M family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery.

📥 Download Datasheet

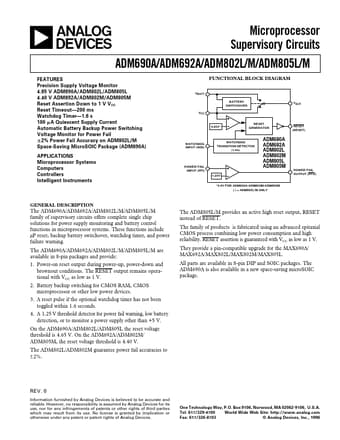

ADM802M Datasheet Preview — This datasheet PDF includes multiple part numbers: ADM802M, ADM. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ADM802M, ADM
Manufacturer: Analog Devices ↗
File Size: 327.38 KB
Datasheet: ADM-802.pdf
Description: Microprocessor Supervisory Circuits
Note: This datasheet PDF includes multiple part numbers: ADM802M, ADM.
Please refer to the document for exact specifications by model.

Features

* Precision Supply Voltage Monitor 4.65 V ADM690A/ADM802L/ADM805L 4.40 V ADM692A/ADM802M/ADM805M Reset Assertion Down to 1 V V CC Reset Timeout
* 200 ms Watchdog Timer
* 1.6 s 100 ␮ A Quiescent Supply Current Automatic Battery Backup Power Switching Voltage Monitor for Power Fail ؎ 2% Powe

Applications

* Microprocessor Systems Computers Controllers Intelligent Instruments 4.65V
* RESET GENERATOR RESET (RESET) WATCHDOG INPUT (WDI) WATCHDOG TRANSITION DETECTOR (1.6s) POWER FAIL INPUT (PFI) 1.25V ADM690A ADM692A ADM802L ADM802M ADM805L ADM805M POWER FAIL OUTPUT (PFO)
* 4.4V FOR ADM692A/AD
