ADM8513

USB TO 10/100 MBPS ETHERNET LAN CONTROLLER

ADM8513 Features

* Clock After reset, the MAC if configured, will read the contents of the EEPROM using EESK, EEDO, and EEDI. This pin provides the clock for the EEPROM.

ADM8513 General Description

48Mhz Clock Input from crystal or oscillator. Output for crystal. External Hardware Reset Input, schmitt trigger, internal pull high USB Data Minus pin. USB Data Plus pin. Rx input Tx Out Crystal In, 25Mhz Crystal Out, 25Mhz Reference Bias Resistor, tied to external 10K(1%) resistor to ground TSTA, .

ADM8513 Datasheet (567.86 KB)

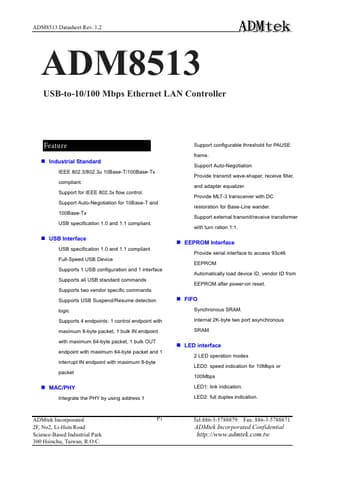

Preview of ADM8513 PDF

Datasheet Details

Part number:

ADM8513

Manufacturer:

ETC

File Size:

567.86 KB

Description:

Usb to 10/100 mbps ethernet lan controller.
