ADM8616

Low Voltage Supervisory Circuits

ADM8616 Features

* Precision 1.8 V to 5 V power supply monitoring 9 RESET threshold options 1.58 V to 4.63 V 4 RESET timeout options 1 ms, 20 ms, 140 ms, 1120 ms 3 watchdog timeout options 6.3 ms, 102 ms, 1.6 sec RESET output stages Push-pull active-low (ADM8616) Open-drain active-low (ADM8617) Low power consumption (

ADM8616 General Description

The ADM8616/ADM8617 are supervisory circuits that monitor power supply voltage levels and code execution integrity in microprocessor-based systems. A power-on reset signal generates when the supply voltage rises to a preset threshold level. The ADM8616/ ADM8617 have an on-chip watchdog timer that ca.

ADM8616 Datasheet (249.67 KB)

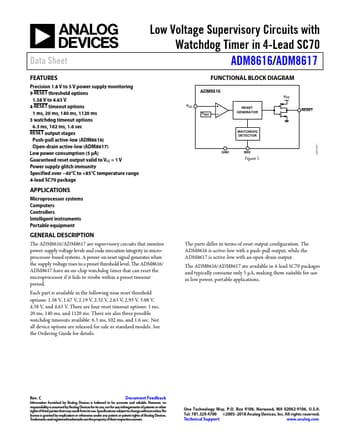

Preview of ADM8616 PDF

Datasheet Details

Part number:

ADM8616

Manufacturer:

Analog Devices ↗

File Size:

249.67 KB

Description:

Low voltage supervisory circuits.
