ADM8828 Datasheet, Inverter, Analog Devices

ADM8828 Features

  • Inverter Inverts Input Supply Voltage 99% Voltage Conversion Efficiency 25 mA Output Current Shutdown Function Requires Only Two Capacitors 1 ␮F Capacitors 18 ⍀ Output Resistance +1.5 V to +5.5

PDF File Details

Part number:

ADM8828

Manufacturer:

Analog Devices ↗

File Size:

250.58kb

Download:

📄 Datasheet

Description:

Switched-capacitor voltage inverter. The ADM8828/ADM8829 is a charge-pump voltage inverter which may be used to generate a negative supply from a positive input. Input vo

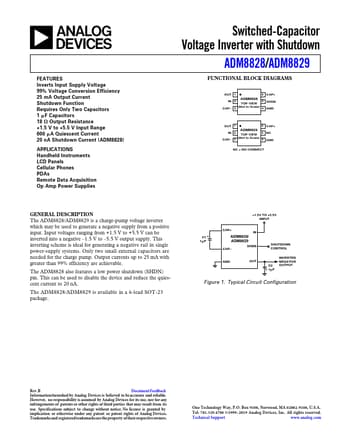

Datasheet Preview: ADM8828 📥 Download PDF (250.58kb)
Page 2 of ADM8828 Page 3 of ADM8828

ADM8828 Application

  • Applications Handheld Instruments LCD Panels Cellular Phones PDAs Remote Data Acquisition Op Amp Power Supplies Switched-Capacitor Voltage Inverter
